Products

Field-proven hardware and cloud software for pipeline inline inspection. Every product is designed to work together as a system.

Hardware Sensors Software Coming Soon
Hardware Flagship

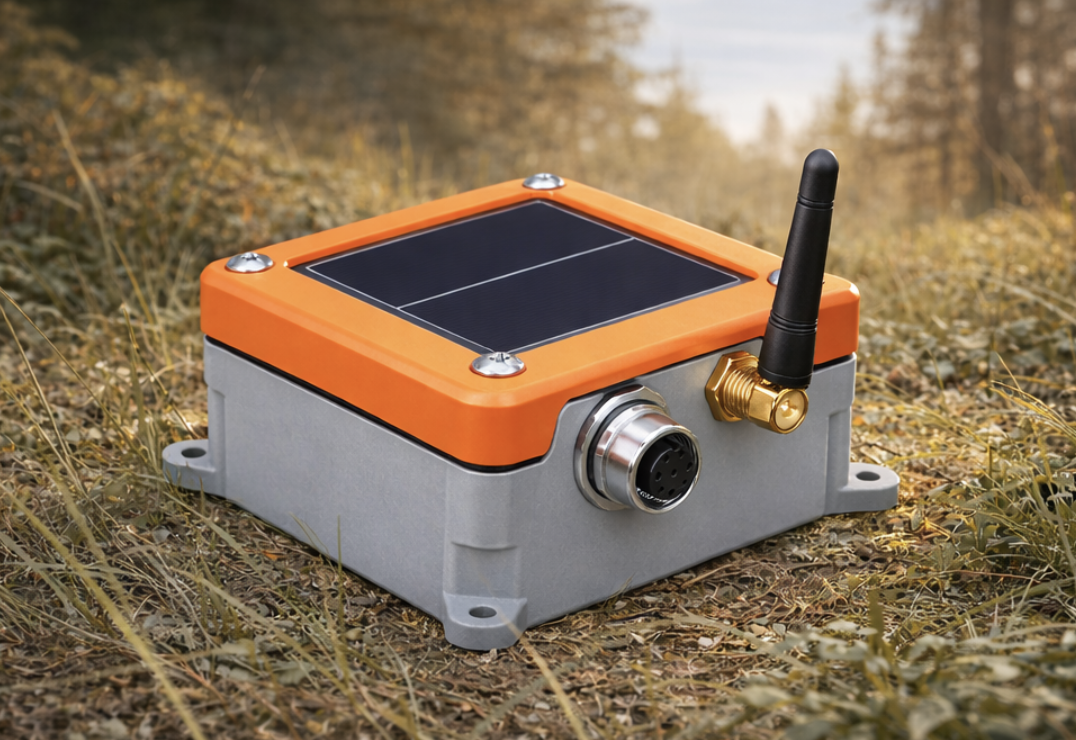

Geode RTD

/jee-ohd/

The Remote Tracking Device that replaces your entire AGM fleet. Four sensor channels, LTE-M connectivity, solar power, and cloud integration in one ruggedized enclosure.

Sensors
ELF Coil, Geophone, Magnetometer, MEMS Accelerometer
Connectivity
LTE-M, WiFi AP, GNSS
Resolution
High-resolution, multi-kilohertz sampling
Power
Li-Ion + 3W Solar, intelligent sleep modes
Timestamp
≤100ms NTP-synced RTC
Enclosure
IP67, UV-resistant, field-ruggedized
Request Quote
Geode RTD

External Sensors

Sensor

External Geophone

Traditional moving-coil geophone for direct ground coupling. Industry-standard sensitivity with weatherproof housing. Connects to Geode RTD via rugged M12 connector.

  • 10 Hz natural frequency
  • Stainless steel spike mount
  • Direct-burial rated
Sensor

ELF Swamp Coil

High-sensitivity external ELF detection coil for challenging terrain. Optimized for wet ground, swamp crossings, and deep-buried pipeline. Extended detection range vs. internal coil.

  • 15–35 Hz tuned bandwidth
  • Waterproof potted construction
  • 10ft+ detection range in wet soil
Sensor

4–20mA Sensor Interface

Universal analog input for third-party industrial sensors. Connect any 4–20mA pressure transducer, flow meter, or level sensor to the Geode for remote monitoring.

  • High-resolution analog input
  • Loop-powered or external
  • Configurable sample rate

Software Platform

PIGSENSE
Cloud Monitoring Platform
Software

Pigsense Web Application

The command center for remote pig tracking. Real-time waveform charts, fleet health dashboard, passage time marking, and project-based device management. Azure IoT Hub backbone with enterprise-grade security.

  • Live scrolling sensor waveform charts
  • Click-to-mark passage timestamps
  • Fleet map with device health overlay
  • Power state control (Sentinel/Standby/Stream)
  • Exportable passage and run reports
192.168.4.1
Geode Local WebUI
Software

On-Device Web Interface

Every Geode hosts a WiFi access point with a built-in web dashboard. Connect from your phone in the field to verify deployment, check sensors, view live data, and configure the device — no cloud required.

  • WiFi AP auto-broadcasts on power-on
  • Battery, GPS, LTE, sensor diagnostics
  • Live waveform preview
  • Device configuration and firmware info

In Development

Next-generation products expanding the Scissortail ecosystem.

Coming 2027

Geode Mini

Ultra-compact recorder-only variant. No LTE — pure SD card logging with extended battery life. Drop, record, retrieve. For operators who need 50+ units on a single run at minimum cost.

  • Dual-channel (geophone + ELF)
  • CR123A lithium batteries (2+ week standby)
  • USB-C data extraction
Coming 2027

AutoPick AI

On-device machine learning for automatic pig passage detection. Trained on thousands of real passage events. Flags candidate passages in real time while the human tracker retains final authority.

  • On-device edge inference
  • ELF envelope + mag zero-crossing fusion
  • Confidence scoring per candidate
Coming 2027

Mesh Repeater Node

Solar-powered LoRa relay for dead-zone coverage. Place between Geode RTDs to bridge LTE coverage gaps in remote pipeline corridors. Transparent data forwarding to the nearest LTE-connected RTD.

  • LoRa 915 MHz, 5+ mile range
  • Self-forming mesh topology
  • Solar + supercapacitor power
Concept

Sentinel Leak Monitor

Permanent-install acoustic leak detection using the Geode platform. Continuous low-power monitoring of pipeline acoustic signatures with cloud-based anomaly detection for early leak identification.

  • Always-on acoustic monitoring
  • Cloud-trained anomaly baseline
  • Regulatory compliance reporting
Concept

CP Monitor

Remote cathodic protection monitoring. Reads pipe-to-soil potential via the Geode's 4–20mA input and streams CP data to the cloud. Eliminates manual CP survey truck rolls.

  • Cu/CuSO4 reference electrode interface
  • Continuous CP potential trending
  • NACE SP0169 compliance data export

White-Label Ready

Your brand. Our hardware. Geode can be manufactured under your label. We handle firmware, cloud, and support. You focus on your customers.

Discuss Partnership
